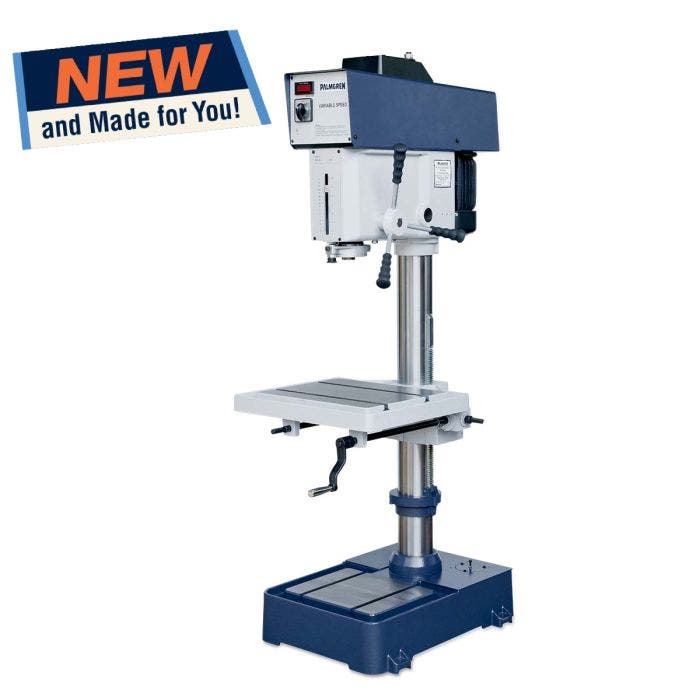

20 in Variable Speed Belt Drive Drill Press 230/460V Three Phase

In stock
Model No
9680227
$5,951.00
  • Front mounted positive control depth stop, oversized head construction provides for an extended quill travel of 4-1/2”
  • Large, ergonomic down feed hand grips designed for end user comfort during operation
  • Oversized 3” quill diameter
  • Front face LED spindle speed readout
  • Worktable can rotate 360° around the machine column
  • Precision ground base work surface with t-slots for large workpieces
  • Side mounted hand wheel for instant speed changes

Product Details

Palmgren’s 20” Variable Speed Drill Presses allow the user to dial into the optimal spindle RPM for any material or tooling combination. While the machine is running, the simple hand wheel adjustments and digital RPM readout makes speed changes a breeze. The heavy-duty cast-iron construction increases the machines’ accuracy and rigidity in any drilling application.
More Information
Column Diameter 4-1/2"
Country of Origin TW
Drilling Capacity in Cast Iron 1-1/2"
Drill Press Model Floor Model
Drill Press Type Variable Speed
Max. Spindle To Base 47"
Max. Spindle to Table 27"
Motor HP 2
Overall Dimensions (LxWxH) 36" x 27" x 78"
Phase Three
Quill Diameter 3"
Speed Range 300 - 2,000 RPM
Spindle Taper MT3
Spindle Travel 6"
Stand work surface (LxW) 22" x 18.5"
Swing 20.8"
Voltage 230/460V
Warranty 3 Year
Working surface base L x W 27" x 19"
UPC 726896802275
Unit of Measure EA
Product Height (in) 75
Product Length (in) 37.5
Product Width (in) 25.5
Product Weight (lbs) 750
