9"X20" Bench Top Lathe

In stock
Model No
9684504
$3,528.00
9"X20" Bench Top Lathe
  • Dual P5 tapper roller bearings on spindle
  • Prismatic bed of solid aged cast iron - hardened to HRO 45 - 52 for long life
  • Precision machine slide with adjustable hand wells with 0.002 in / 0.001 in scales

Product Details

Palmgren's 9" bench engine lathe delivers the precision, power and versatility to handle a wide range of turning operations normally found in much larger machines. Heavy cast iron construction, smooth power transmission, precision thrust and ball bearings in the head stock and spindle, hardened and ground ways all designed to give you years of trouble-free, precise turning. Built and inspected to the DIN 8606 toolmakers' precision lathe standard, assuring accuracy and consistent performance. The bench lathe is the right choice for turning small metal parts and is used in prototype shops, tool rooms, fabrication shops, maintenance shops, jewelry manufacturing and by home and hobby machinists.
More Information
Lathes Type Bench Top
Motor HP 1
Number of Spindle Speeds 6

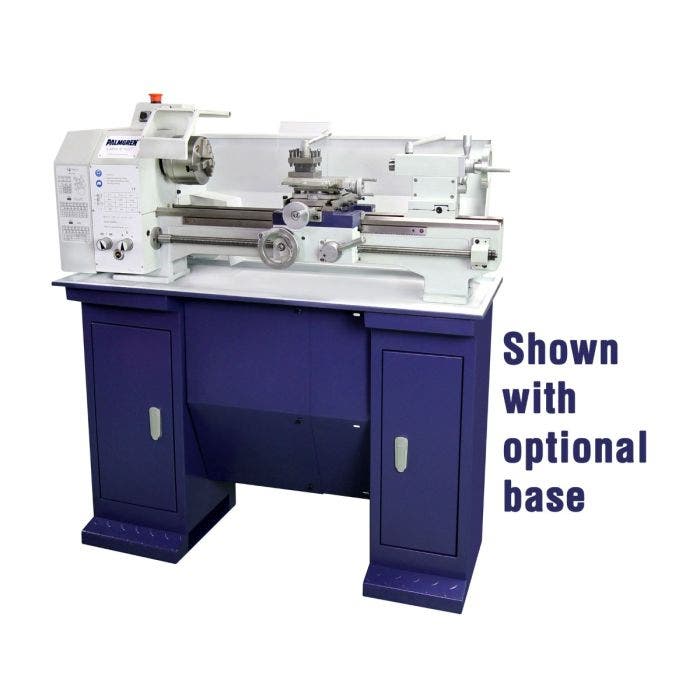

Optional Accessories Optional extras include: a heavy duty steel floor stand with hinged doors for added storage (9684505)
Pitch 56 - 8 in
Longitudinal Feed Rates 0.002 & 0.012 in
Max Swing over Compound Slide 5.91 in
Spindle Bore 1.02
Spindle Hole 1.02"
Tool Holder Seat Height 0.5 in
Top Slide Travel 2.76 in
Voltage 115
Tailstock Sleeve Travel 2.56 in
Tailstock Taper MT2
Master Pack Height (in) 18.7
Master Pack Length (in) 49.21
Master Pack Weight (lbs) 276
Master Pack Width (in) 23
Warranty 3 Year
UPC 726896845043
Country of Origin CN
Brand Palmgren
Unit of Measure Each
Product Height (in) 19
Product Length (in) 50
Product Weight (lbs) 325
Product Width (in) 23
Distance Between Centers 20"
Phase Single
Bed Width 5.31 in
Chuck Size 4.92 in
Compound Travel 4.33 in
