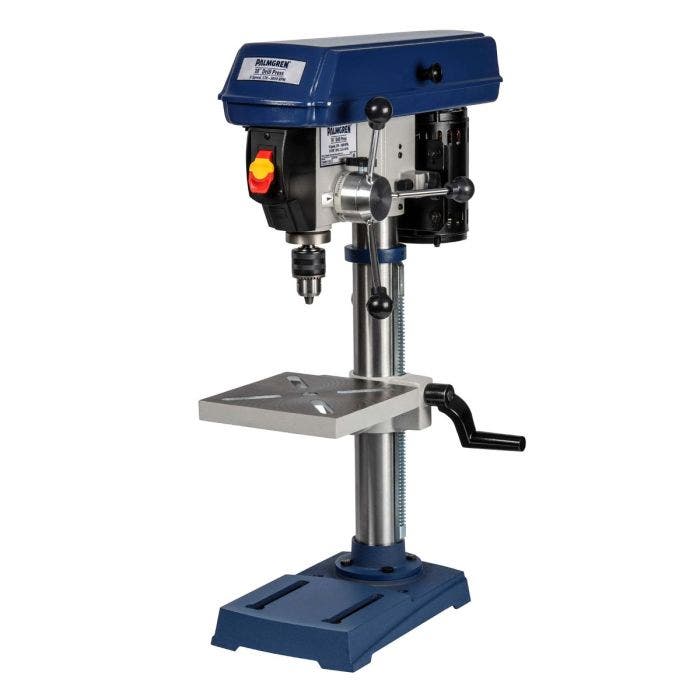

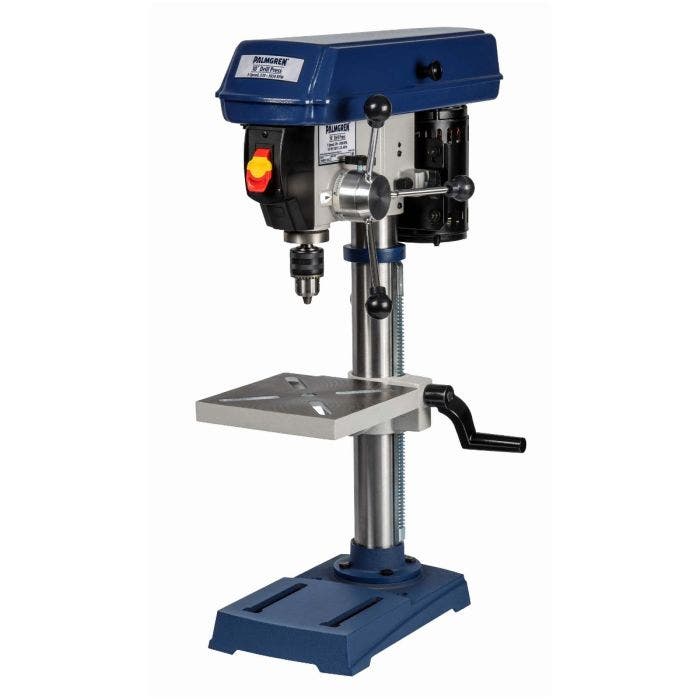

10" 5-Speed Bench Step Pulley Drill Press

In stock
Model No
9680110
$293.00
10" 5-Speed Bench Step Pulley Drill Press
  • Durable cast iron head, table and base
  • Spindle supported by high quality ball bearings
  • Rack and pinion table raiser
  • Table tilts 45° to the right & left and swivels 360° around the column
  • 1/2" through table & base slots for easy mounting and clamping of workpiece
  • Laser alignment
  • Spindle depth stop
  • Front mounted safety, paddle on/off switch
  • Drill chuck & key

Product Details

This practical light to medium duty drilling machine combines performance and economy into one. It's an ideal choice when working with metal, composite, plastic or wood. Available in a bench model, step pulley, belt driven.
More Information
AMPS 3.2
Capacity Cast Iron 1/2"
Country of Origin CN
Drill Press Model Bench Model
Model Number 80110
Motor HP 1/3
RPM 570-3070
Spindle Taper JT33
Spindle Travel 2-1/2"
Swing 10"
Table Dimensions 7-13/16" x 7-13/16"
Table Slots 1/2" W x 4-11/16" L
Voltage 115
Warranty 3 Year
UPC 726896801100
Unit of Measure Each
Product Height (in) 12
Product Length (in) 27.85
Product Width (in) 19.5
Product Weight (lbs) 55
