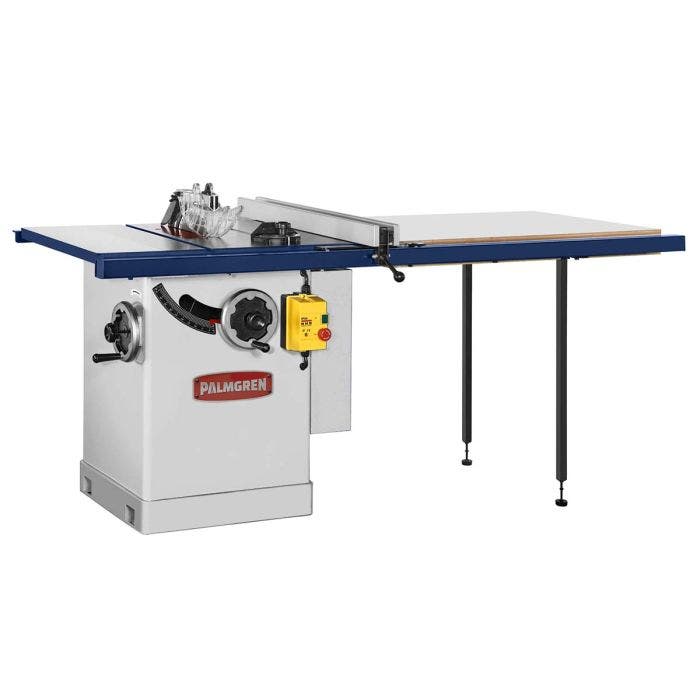

10" Right Tilt Cabinet Saw

In stock
Model No
9683414
$2,800.00
  • Left tilt or right tilt blade
  • Machined cast iron table w/cast iron extensions: 10" - 37"W x 27"D with 2 miter gauge slots 12" - 48"W x 30"D with 2 miter gauge slots
  • "T" Style rip fence assembly glides smoothly on front and rear rails
  • Quick release blade guard system with riving knife and anti-kickback pawls
  • Includes rip fence, miter gauge, 10" x 40 tooth general purpose blade, 5/8" dado extension, dado insert 12" x 40 tooth general purpose blade, 5/8" arbor extension, 5/8" dado extension, 1" arbor extension, dado table insert

Product Details

Palmgren 10" cabinet table saws offer precise cutting performance for all woods up to 3" thick. Ruggedly constructed for continuous service. The saw features an extra large cast iron table with extensions for ripping a max of 50" to the right of the blade. For dado cuts a 5/8" diameter arbor and 5/8" diameter arbor extension are included with the dado table insert. Max 13/16" dado capacity. The rip fence assembly is designed for simple one-hand maneuverability. Table height is 34" high.
More Information
AMPS 16A
Blade Length 10" -5/8" Bore
Country of Origin TW
Cutting Depth 45 degree 2-1/8"
Cutting Depth 90 degree 3"
Dust Collection Yes
Dust Collection Port Size-In. 4"
Manual Horiz. Band Saw Type Miter with vise
Motor HP 3 HP
Phase Single
Ripping Capacity Left 10"
Ripping Capacity Right 50"
Sawing Type Wood Cutting Saws
Table w/ Ext 37" x 27"
Voltage 230V
Wood Cutting Saw Type Cabinet
UPC 726896834146
Unit of Measure Each
Product Weight (lbs) 576
