10" X 21" Bench Lathe

In stock
Model No
9684509
$3,648.00
10" X 21" Bench Lathe
  • EACH LATHE COMES STANDARD WITH: Safety chuck and tool post guards
  • Centers
  • Precision thrust and ball bearings in the head stock
  • (3) Jaw Chuck. Splash Guard
  • 4-Way Tool Post. Lathe Chuck Guard
  • Tool Post Chip Guard
  • Steady Center MT2 and MT4
  • Change Gear Kit

Product Details

Palmgren's 10" bench model engine lathes deliver the precision, power and versatility to handle a wide range of turning operations normally found in much larger machines. Heavy cast construction, smooth power transmission with helical gears, hardened and ground ways all designed to give you years of trouble-free, precise turning. All Optimum lathes are built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The bench lathe is the right choice for turning small metal parts and is used in proto type shops, home machinists, jewelry manufacturing, tool rooms, fabrication shops and maintenance shops.
More Information
Lathes Type Bench Top
Motor HP 1
Number of Spindle Speeds 6

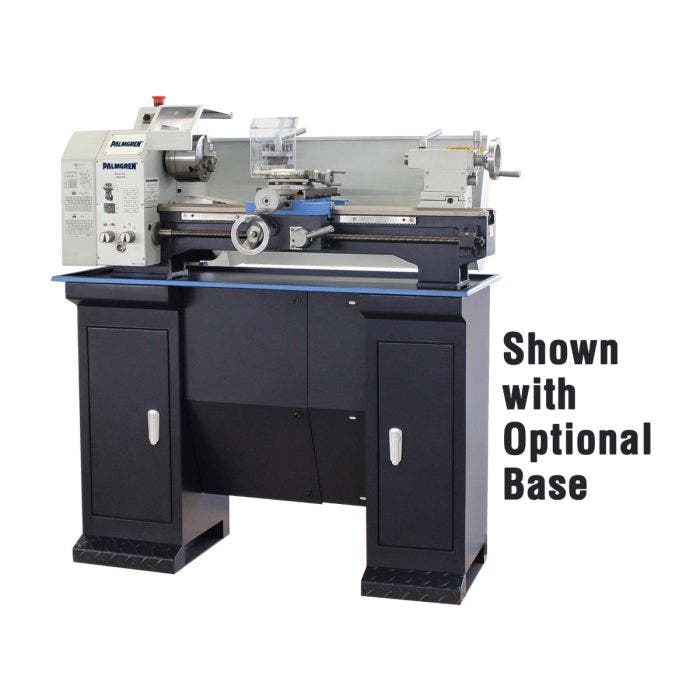

Optional Accessories Item # 9684505 - Steel floor stand
Overall Dimensions (LxWxH) 50" x 23" x 19"
Longitudinal Feed Rates 0.003 to 0.016
Spindle Bore 1"
Thread Range (mm) 0.2 to 4.0
Voltage 115
Thread Range (In.) 8 to 56
Tailstock Taper MT 2
Tailstock Travel 2-1/2"
Master Pack Height (in) 19
Master Pack Length (in) 2.38
Master Pack Weight (lbs) 0.8
Master Pack Width (in) 2.38
Warranty 3 Year
UPC 726896845098
Country of Origin CN
Brand Palmgren
Unit of Measure Each
Product Weight (lbs) 275
Distance Between Centers 21"
Phase Single
Swing Over Bed 10"
Bed Width 3-1/2"
Carriage Travel 17"
Compound Travel 2-3/4"
Cross Slide Travel 4-3/4"
