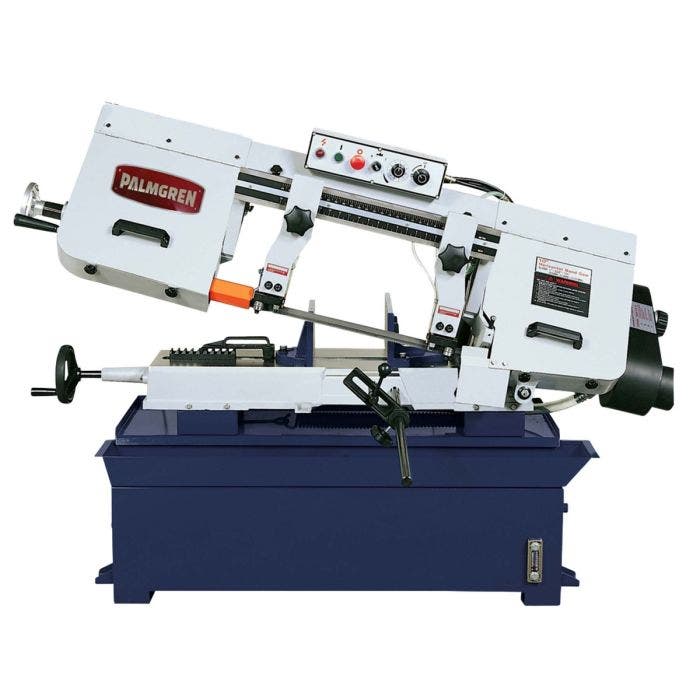

10 x 16 Variable Speed Horizontal Band Saw Single Phase

In stock
Model No
9683275
Special Price $4,285.80 Regular Price $7,143.00
  • Step pulley drive train with 4 speed settings to cover all your sawing applications
  • Heavy duty transmission utilizes hardened and ground gears operating in an oil bath providing smooth, quiet positive surface feet per minute to the blade
  • Variable hydraulic saw head feed delivers fast, accurate cuts while extending blade life
  • Blade tension indicator with large hand wheel to ensure proper blade tensioning
  • Adjustable parallel ball bearing and carbide blade guides provide maximum support and ensure square, accurate cuts
  • Flood coolant system with the coolant fed through the blade guides to maximize cooling and cleaning of chips from the blade
  • Blade brush to aid in the removal of chips from the blade
  • Quick acting vise allows for fast, secure clamping of the workpiece
  • Conveniently located operating controls with emergency stop switch and keyed power lock out
  • Auto shut off at end of the cut
  • Read our blog for more information
  • 40% discount while supplies last

Product Details

Palmgren’s 10” x 16” Horizontal Band Saws are the perfect match in versatility and value. These saws are designed for fast and accurate cuts on all types of ferrous and non-ferrous materials. Heavy duty construction of the saw head and base provide full blade support eliminating vibration and deflection. These machines are built with more standard features to provide maximum performance, greater accuracy and more economical operation.
More Information
Band Saw Type Horizontal
Cold Saw and Band Saw Saw Type Manual
Country of Origin TW
Machine Weight 704
Motor HP 2
Overall Dimensions (LxWxH) 74" x 29.5" x 44"
Phase Single
Rectangle 0? 10" x 16"
Round Material Max. 0 Degrees 10"
Round Material Max. 45 Degrees 7-1/2"
Sawing Type Horizontal Band Saws
Voltage 230
UPC 726896832753
Unit of Measure EA
Product Height (in) 44
Product Length (in) 74
Product Width (in) 30
Product Weight (lbs) 792
