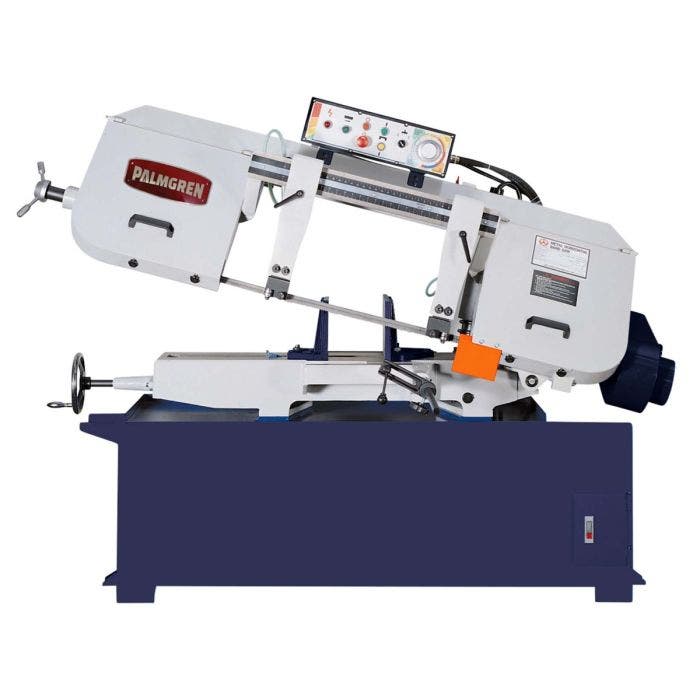

13" X 19" Semi-Automatic Horizontal Band Saw
In stock
Model No
9683277
$17,143.00
- Variable speed step pulley drive train
- Heavy duty transmission utilizes hardened and ground gears operating in an oil bath providing smooth, quiet positive surface feet per minute to the blade
- Variable hydraulic saw head feed delivers fast, accurate cuts while extending blade life
- The cutting pressure control provides a guide to the best feed rate based on material hardness
- Blade tension indicator with large hand wheel to ensure proper blade tensioning
- Adjustable parallel ball bearing and carbide blade guides provide maximum support and ensure square, accurate cuts
- Flood coolant system with the coolant fed through the blade guides to maximize cooling and cleaning of chips from the blade
- Blade brush to aid in the removal of chips from the blade
- Quick acting vise allows for fast, secure clamping of the workpiece
- Conveniently located operating controls with emergency stop switch and keyed power lock out
- Auto shut off at end of the cut
- Chip cleaner nozzle and hose is included and can be stored within bandsaw base cabinet
Product Details
Palmgren’s 13" x 19" Semi-Automatic Horizontal Band Saw is the premiere option for the medium to heavy duty saw user. This saw is designed for fast and accurate cuts on all types of ferrous and nonferrous
materials. With its heavy-duty construction of the saw head and base providing full blade support eliminating vibration and deflection. The semi-automatic operation reduces wear and tear on the user
removing the need for them to manually lift the saw head after each cut.
| Band Saw Type | Horizontal |
|---|---|
| Cold Saw and Band Saw Saw Type | Manual |
| Country of Origin | TW |
| Motor HP | 3 |
| Net Weight | 1320 |
| Overall Dimensions (LxWxH) | 90" x 35" x 59" |
| Phase | Three |
| Rectangle 0? | 13" x 19" |
| Round Material Max. 0 Degrees | 13" |
| Round Material Max. 45 Degrees | 10" |
| Sawing Type | Horizontal Band Saws |
| Voltage | 230 |
| UPC | 726896832777 |
| Unit of Measure | EA |
| Product Height (in) | 59 |
| Product Length (in) | 90 |
| Product Width (in) | 35 |
| Product Weight (lbs) | 1485 |
