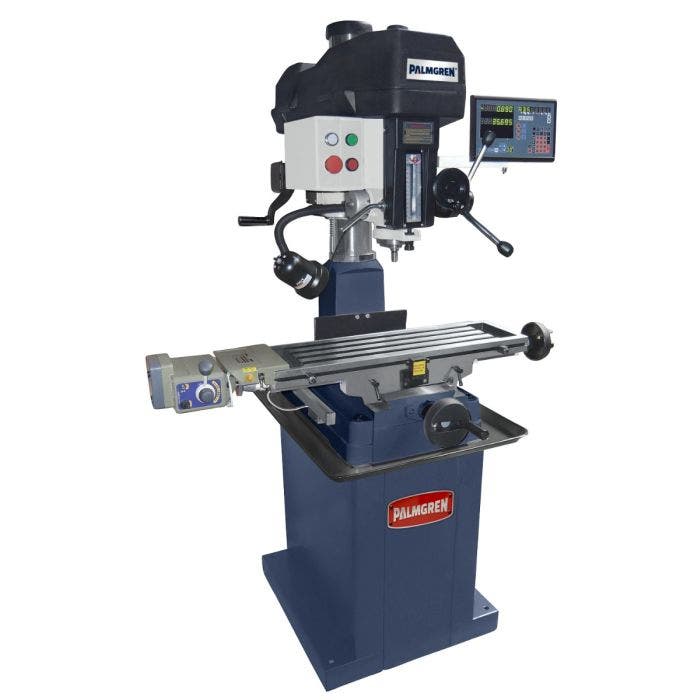

16 Inch 1-1/2HP Deluxe Mill/Drill

In stock
Model No
9680114
Special Price $6,147.60 Regular Price $10,246.00
16 Inch 1-1/2HP Deluxe Mill/Drill
  • Fully enclosed R-8 spindle has heavy-duty tapered thrust bearings at top and bottom of quill
  • Large table has dovetail ways with adjustable gibs and bronze lead screw nuts for accurate and rigid table positioning
  • Table has four 1/2" T-slots, zero-setting handwheel dials with 0.001" graduations, adjustable stops for longitudinal feed and cross feed way cover
  • Adjustable depth stops with scale
  • Digital Readout on the X & Y Axes reads to 0.001"
  • Includes: Machine Stand, Drill Chuck Arbor, 1/2" Chuck and Key, Face Mill Arbor, 2-1/2" Face Mill, R8/MT3 Adaptor, 6-pc R8 Collet Set

Product Details

Palmgren’s Deluxe 16" Mill/Drill Machine is ruggedly constructed to provide accurate milling, drilling, slotting and boring capabilities. This machine combines the abilities of a belt driven drill press with a bench top mill for space saving value for small shops and one-off applications. With 2-axis DRO and X-Axis power feed systems, this machine is equipped for any high tolerance applications. The one-piece cast-iron head rotates 360° and travels vertically by rack and pinion. The hinged pulley cover allows fast and easy speed changes in between operations.
More Information
Column Diameter 4-1/2"
Country of Origin TW
Draw Bar Thread 7/16" - 20
Drilling Capacity in Cast Iron 1-1/2"
Milling Cap Cutter Head (max) 3"
Milling Cap End Mill Cut (max) 3/4"
Milling Machines Type Gear Head
Motor HP 1-1/2
Overall Dimensions (LxWxH) 32" x 32" x 84"
Phase Single
Quill Collar Diameter 3-3/4"
Quill Diameter 4-1/2"
Quill Travel 5"
Speed Range 150 - 3,000 RPM
Spindle Taper R8
Swing 16"
Voltage 115/230
Warranty 3 Year
X Axis Travel 23"
Y Axis Travel 7"
UPC 726896801148
Unit of Measure Each
Product Height (in) 57
Product Length (in) 38
Product Width (in) 30
Product Weight (lbs) 700
