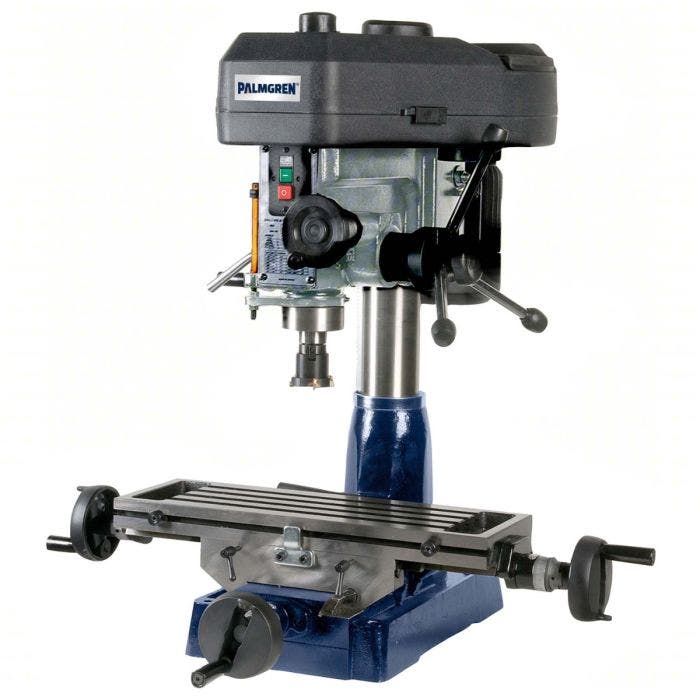

16 Inch 3/4HP Mill/Drill Machine
In stock
Model No
9680112
$3,950.00
- 16” Swing
- Fully enclosed R-8 spindle has heavy-duty tapered thrust bearings at top and bottom of quill
- Large 23” x 7-3/8” table has dovetail ways with adjustable gibs and bronze lead screw nuts for accurate and rigid table positioning
- Table has four 1/2” T-slots, zero-setting handwheel dials with .001” graduations, adjustable stops for longitudinal feed and cross feed way cover.
- 12 Speeds: 115 to 2580RPM
- Adjustable depth stops with scale
- Draw Bar (7/16”-20) and Way Cover
- Spindle Stroke 3-3/8”
- Work Light
- Includes: Drill Chuck Arbor, 1/2" Chuck and Key, Face Mill Arbor, 2-1/2” Face Mill, R8/MT3 Adaptor, 6-pc R8 Collet Set
- Read our blog for more information
Product Details
Palmgren 12-Speed Mill Drill Model 9680112 is a ruggedly constructed machine providing accurate milling, drilling, slotting and boring capabilities. One-piece cast-iron head rotates 360° and travels vertically by rack and pinion. Hinged pulley cover allows fast and easy speed changes. A 3/4 HP, 1725 RPM, 115/230-volt, 60 Hz single-phase motor and 115v work lamp are included. Prewired for 115V.
Related Products
Check items to add to the cart or
| Column Diameter | 3-5/2" |
|---|---|
| Country of Origin | TW |
| Draw Bar Thread | 7/16" - 20 |
| Drilling Capacity in Cast Iron | 1" |
| Main Motor | 3/4 |
| Milling Cap Cutter Head (max) | 2-1/2" |
| Milling Cap End Mill Cut (max) | 1/2" |
| Overall Dimensions (LxWxH) | 27" x 33" x 40" |
| Phase | Single |
| Quill Collar Diameter | 3-1/2" |
| Quill Diameter | 2-1/2" |
| Quill Travel | 3-3/4" |
| Speed Range | 115 - 2,580 RPM |
| Spindle Taper | R8 |
| Swing | 16" |
| Voltage | 115/230 |
| Warranty | 3 Year |
| X Axis Travel | 14-1/2" |
| Y Axis Travel | 5-1/2" |
| UPC | 726896801124 |
| Unit of Measure | EA |
| Product Height (in) | 45 |
| Product Length (in) | 29 |
| Product Width (in) | 28 |
| Product Weight (lbs) | 400 |
