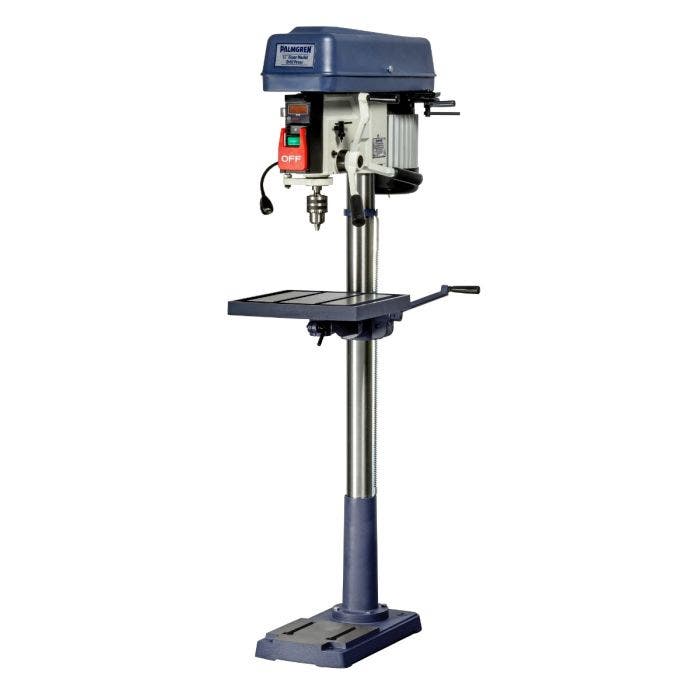

17" 1Ph 16-Speed Floor Step Pulley Drill Press

In stock
Model No
9680177
$1,541.00
17"  1Ph 16-Speed Floor Step Pulley Drill Press
  • Fully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operations
  • Maximum spindle run out of 0.0005"
  • Extended quill/spindle travel ideal for deep hole applications
  • LED readout for spindle speeds
  • Quick change vertical depth stop for accurate, repeatable feed length
  • Includes chuck with key and arbor
  • Rack and pinion table raiser
  • Table tilts 45 degrees right and left and rotates 360 degrees around the column
  • Front mounted industrial paddle type power switch

Product Details

Palmgren's step pulley drill presses are substantially constructed to provide a solid base for all your drilling operations, and offer a greater range of spindle speeds than any others in their class. They have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications.
More Information
Overall Dimensions (LxWxH) 68" H x 15-1/2" W x 28" D
Motor HP 1
RPM 138 - 3476
Voltage 120/240
Table Slots 5/8"
Spindle Taper MT2/JT3
Spindle Travel 5
Swing 17"
Table Dimensions 14-3/8" x14-3/8"
Master Pack Height (in) 68
Master Pack Length (in) 28
Product Width (in) 25.8
Product Weight (lbs) 216
Warranty 3 Year
UPC 726896801773
Country of Origin CN
Brand Palmgren
Unit of Measure Each
Product Height (in) 10.5
Product Length (in) 54.3
Master Pack Weight (lbs) 183
Master Pack Width (in) 15.5
AMPS 10.2/5.1
Capacity Cast Iron 7/8"
Phase Single
Drill Press Model Floor Model
Drill Press Type Step Pulley
