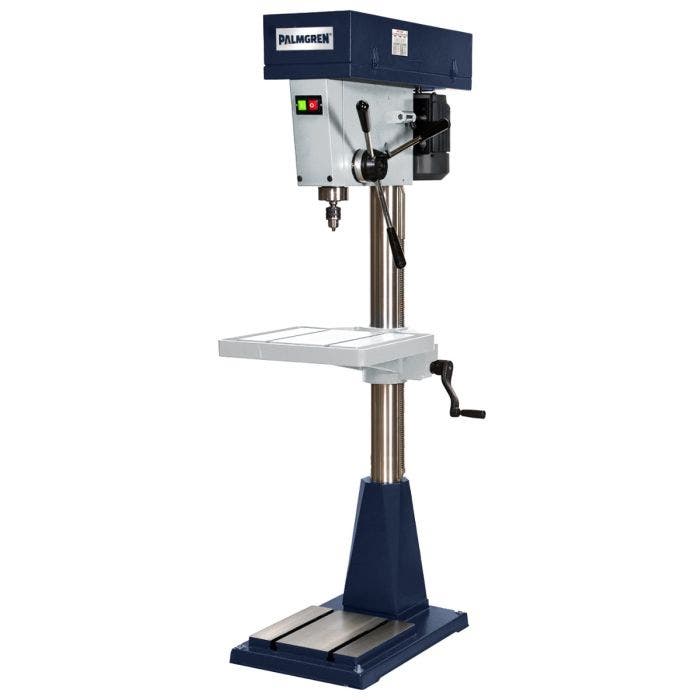

20" 12-Speed Floor Step Pulley Drill Press

In stock
Model No
9680116
$3,734.00
20"  12-Speed Floor Step Pulley Drill Press
  • Comes equipped with an LED work light built into the head casting
  • Comes with a 1/2" drill chuck and arbor
  • Oversized 4" column provides increased rigidity
  • A 4-3/4 inch stroke allows for deep hole drilling applications
  • Quick belt tension release for rapid speed changes
  • Spindle depth stop for blind hole drilling applications

Product Details

Palmgren’s 20" Heavy Duty Step Pulley Drill Press comes with a 12-speed stepped pulley system. This enables the machine to run a wide range of spindle speeds and have toolless speed changes in between operations. With its oversized, cast-iron head, this machine has an increased drilling capacity versus its competitors.
More Information
AMPS 16/8
Capacity Cast Iron 1-1/4"
Country of Origin TW
Motor HP 1
Overall Dimensions (LxWxH) 32-1/2" x 24-1/2" x 70-1/2"
Phase Single
RPM 140 - 2,600
Spindle Taper MT3
Spindle Travel 4-3/4"
Swing 20"
Table Slots 5/8"
Voltage 115/230
Warranty 3 Year
UPC 726896801162
Unit of Measure Each
Product Height (in) 77
Product Length (in) 36
Product Width (in) 29
Product Weight (lbs) 484
