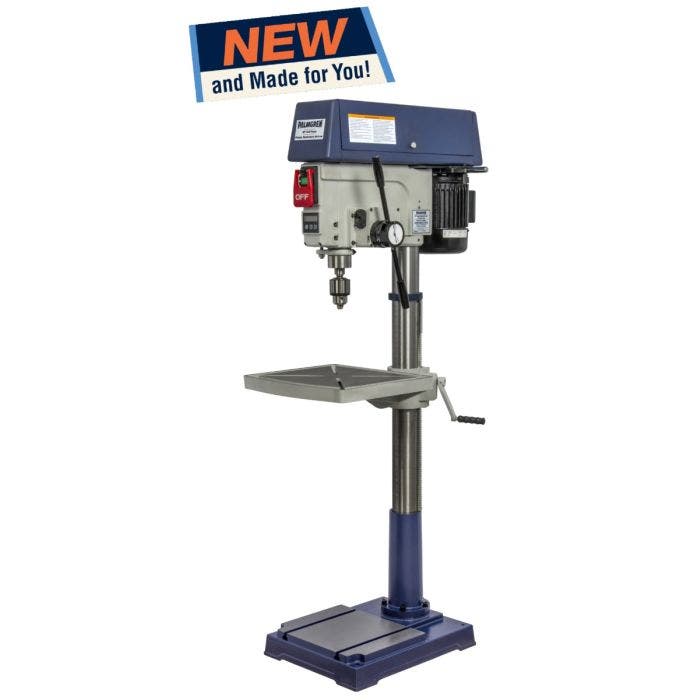

20" Step Pulley Drill Press With Power Feed
In stock
Model No
9680207
$2,285.00
- Table can be tilted to the left and right
- Table can be rotated 360° around the column
- Digital readouts for spindle depth and RPM
- Positive quick-adjust feed depth stop
- Includes ¾” chuck and MT3 to JT3 arbor
Product Details
Palmgren’s 20” Power Feed Step Pulley Drill Press is a one-of-a-kind machine. This machine features oversized head, table and base castings for increased rigidity during heavy drilling operations. Loaded with special features including digital readout displays for drill depth and spindle RPM, quick belt change and tensioning, and depth stop. All of these features, backed by a 1-1/2 horsepower motor, combine to make the ultimate drill press for home shops, maintenance shops, and industrial applications.
| Chuck Size | 5-20/JT3 mm |
|---|---|
| Column Diameter | 3.62 in |
| Country of Origin | CN |
| Distance spindle-table (max.) | 45-3/8 in |
| Drilling Capacity in Cast Iron | 45-3/8 in |
| Drill Press Model | Floor Model |
| Drill Press Type | Step Pulley |
| Motor HP | 1.5 |
| Motor Speed (RPM) | 120-3600 RPM |
| Number of Spindle Speeds | 120-3600 rpm，16steps |
| Number of Table Slots | 3 |
| Phase | Single |
| Voltage | 120/240V 60Hz |
| Warranty | 3 Year |
| UPC | 726896802077 |
| Unit of Measure | EA |
| Product Height (in) | 19.5 |
| Product Length (in) | 59 |
| Product Width (in) | 30 |
| Product Weight (lbs) | 300 |
