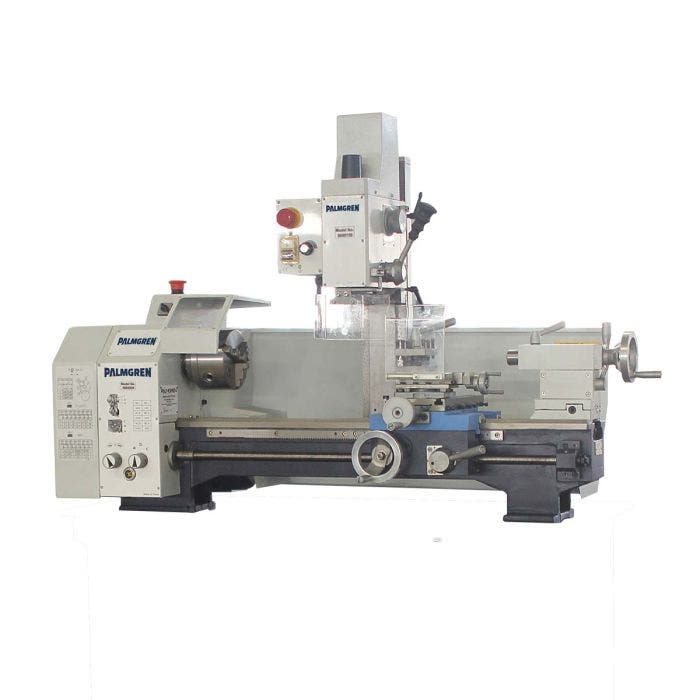

9"X20" Bench Combo Lathe and Vari-Speed Mill

In stock
Model No
9680213
$5,180.00
9"X20" Bench Combo Lathe and Vari-Speed Mill

Product Details

Palmgren's combination 9" bench engine lathe and gear head mill delivers the precision, power and versatility to handle a wide range of turning, milling and drilling operations normally found in much larger machines.Heavy cast iron construction, smooth power transmission with precision thrust and ball bearings in the head stock and spindles, hardened and ground ways all designed to go give you years of trouble-free, precise turning, milling and hole making machining. Built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The all gear drive transmission on the mill delivers full power at any speed driving the cutting tools at nearly 100% of available horsepower and torque. With such a wide range of versatility and features, this all-purpose combination lathe/mill is one of the most function manual machine centers that can operate in all types and sizes of shops.
More Information
Lathes Type Gear Head
Milling Cap of End Mill Cutter 3/4"
Motor HP 5/8
Number of Spindle Speeds 6
Overall Dimensions (LxWxH) 33-1/2" x 49" x 23"
Pitch 0.2 - 4 / 8 - 56
Milling Cap Inserted Tooth Cut 2-1/2"
Longitudinal Feed Rates 0.003" 0.004" 0.006" 0.008 0.012" 0.016"
Low Speed 100 - 1500
Max Turning Diameter 9-7/8"
Mill Weight 132
Spindle Holding Fixture MT2 3/8"-16 Draw Bar
Spindle Hole 1"
Travel Top Slide 19-1/2"
T-Slot Size/Distance/Quantity 5/8"
Voltage 115
Working Radius 6-3/4"
Spindle Travel 2"
Swivel of the Milling Head + / - 90°
Table Dimensions 10" x 4-3/4"
Tailstock Sleeve Travel 2-1/2"
Tailstock Taper MT2
Z-Axis Travel 10-1/2"
Master Pack Height (in) 33.5
Master Pack Length (in) 2.38
Master Pack Weight (lbs) 1.4
Master Pack Width (in) 2.38
Warranty 3 Year
UPC 726896802138
Country of Origin CN
Brand Palmgren
Unit of Measure Each
Product Weight (lbs) 452
Distance Between Centers 20"
Phase Single
Gear Stages 2
Height Of Center 4-3/4"
High Range 200 - 3000
Lathe Motor 1PH - 115V - 13.6 Amps - 1PH - 60 Hz
Lathe Weight 452
Drilling Capacity in Cast Iron 5/8"
Dist. Btwn. Cntr. & Comp. Tab. 3"
Swing Over Bed 9"
4 Position Tool Post Height 3-3/4"
Bed Width 5-7/8"
Chuck Size 5"
Compound Travel 3-9/16"
