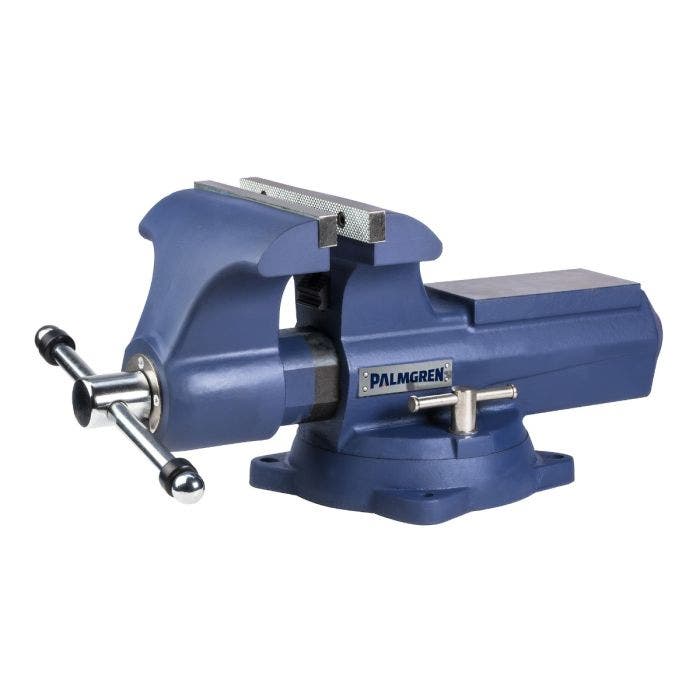

Comb. Bench & Pipe Vise, 5.5"

In stock
Model No
9629755
$950.00
Comb. Bench & Pipe Vise, 5.5"
Comb. Bench & Pipe Vise, 5.5"
  • Straight line power tunnel design - unbreakable spindle & nut with increased clamping power
  • Enclosed construction keeps lubrication in & contaminants out, making it ideal for both indoor & outdoor use
  • Hardened replaceable steel jaw inserts ensures positive hold
  • Hardened replaceable steel self-centering pipe jaws hold round materials securely
  • Extra deep throat gives you more working room where it counts
  • Precision slide bar machined for a .002" fit
  • Oversized machined anvil provides structural integrity and consistent properties of toughness and hardness for greater working area
  • ULTRA STRONG, the entire vise is made of 65,000 PSI ductile iron - coupled with our exclusive manufacturing process of the body and nut – delivers a vise that is 50% stronger than all gray iron vises and 20% stronger than competitive ductile iron vises
  • Locking swivel base with 360 degree rotation enhanced by double lockdowns for non-slip hold in any position
  • Read our blog for more information

Product Details

The Palmgren 5.5 -in Comb. Bench & Pipe Vise houses a super strong power tunnel with straight-line pull that assures a lifetime spindle and nut never to wear out. A precision fit of the slide bar eliminates side play and jaw wobble even when clamping with the jaws wide open. The vise spindle and nut are totally enclosed in a square tube casting that protects them from dust, chips and moisture, keeping them lubricated for life.
More Information
Anvil Length x Width 3-1/2" x 5-3/4"
Bench Vise Type Combination Pipe and Bench
Country of Origin TW
Jaw Opening 8-1/2"
Jaw Type Replaceable
Jaw Width 5-1/2"
Material Ductile Iron
Max. Jaw Opening 5.75 in
Mounting Hole .5 in
Overall Dimensions (LxWxH) 16" x 10" x 10"
Pipe Jaw Capacities 1/4" – 3-1/2"
Throat Capacity 3.75 "
Vise Material Ductile
Vise Type Bench Vises
Warranty Limited Lifetime
UPC 726896297552
Product Height (in) 11.5
Product Length (in) 18
Product Width (in) 11
Product Weight (lbs) 55
