- Pressure gauge for direct pressure readings
- Easily adjustable table for quick height changes between applications
- Holes in side frames allow for insertion of long material
- Hand operation for economic performance
- Efficient hand pump is conveniently located for reduced operator fatigue
- Fully-welded heavy steel plate frame for maximum rigidity
- Factory preset relief valve to prevent exceeding maximum pressure capacity
- By-pass hole prevents excessive ram extension
- Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve
- Single acting cylinder design for improved operation
- Table Weight Capacity: 2200 lbs
- Adj. between Table Pin to Holes: 5.1 in
- Distance between channels: 8.19 in
- V-Block Weight: 5.9 lbs
Product Details

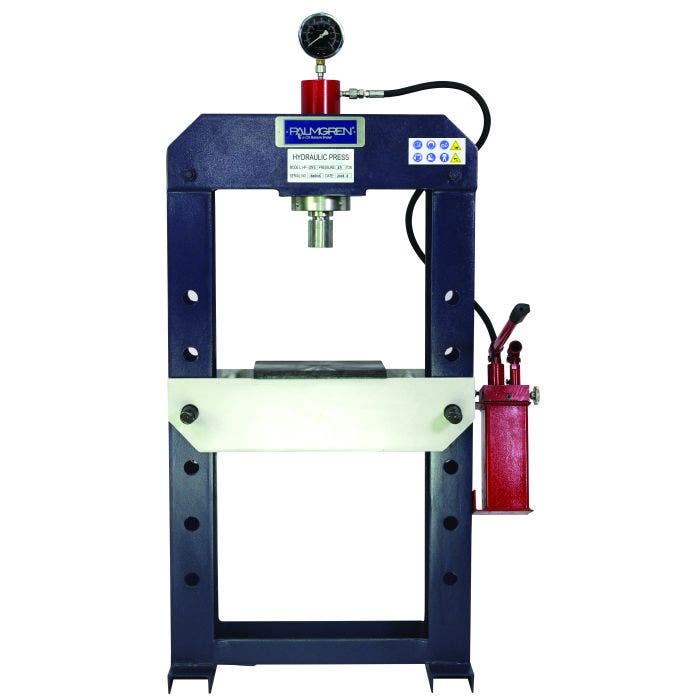

Palmgren’s Hand Operated H-Frame Press Line consists of 10, 25- and 75-ton presses. Each machine is constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution for the serious fabrication and machine shop owner who demands only the best quality from his operation.
| Capacity over Table (inches) | 11.8 |
|---|---|
| Country of Origin | CN |
| Cylinder (Fixed or Dynamic) | FIXED |
| Cylinder Type | Single Action |
| Diameter of Work (inches) | 19.7 |
| Frame Capacity | 25 TONS |
| H-frame Press Type | Manual Pump |
| Largest Arbor Extension | 6.3 |
| Leverage Radio | 1000/1 |
| Max. Distance Ram to Table | 28.3" |
| Max Pressure | 25 ton |
| Minimum Work Diameter | 19 x 0.04 |
| Overall Dimensions (LxWxH) | 35.4" x 14.1" x 59.8" |
| Pressure (tons) | 25 |
| Press Type | H-frame Presses |
| Pump Type | MANUAL |
| Ram Bore (inches) | 2.1 |
| Ram Diameter | 2.28 |
| Ram Size | 6.3 |
| Reservoir Capacity | 2.5 QT 3L |
| Size of Ram Face (inches) | 2.25 Dia. |
| Table Weight | 88 |
| Warranty | 3 Year |
| Working Height (inch) | 10-30 |
| Working Width (inch) | 19.5 |
| UPC | 726896616131 |
| Unit of Measure | Each |
| Product Height (in) | 59 |
| Product Width (in) | 39.5 |
| Product Weight (lbs) | 260 |
