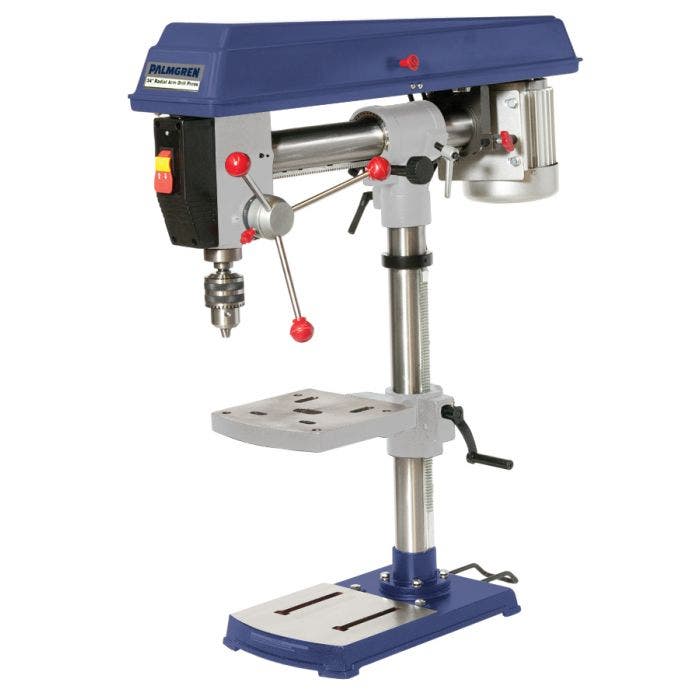

Radial Arm - 5 Speed Bench step pulley drill press

In stock
Model No
9680341
$804.00
Radial Arm - 5 Speed Bench step pulley drill press
  • Durable cast iron head, table & base
  • Spindle supported by high quality ball bearings
  • Rack and pinion table raiser
  • Table tilts 45° right & left and swivels 360° around the column
  • 1/2" through table & base slots for easy mounting and clamping of workpiece
  • Front mounted safety, paddle on/off switch
  • Drill chuck & key
  • The head tilts 90° left and 45° right
  • The head of the drill press moves 12-1/2" forward or backward

Product Details

An extended reach, tilting drill head is ideal for large or odd-shaped work pieces. The table tilts 45° left or right allowing easy machining of holes at almost any angle.
More Information
Motor HP 1/2
RPM 600-2592
Voltage 115
Table Slots 1/2"
Spindle Taper MT2/JT33
Spindle Travel 3-5/32"
Swing 9" to 33"
Table Dimensions 8-7/8" x 9"
Model Number 80341
Master Case Pack Qty 1
Master Pack Height (in) 37
Master Pack Length (in) 33
Product Width (in) 16.5
Product Weight (lbs) 100
Warranty 3 Year
UPC 726896803418
Country of Origin CN
Brand Palmgren
Unit of Measure Each
Product Height (in) 13
Product Length (in) 37
Master Pack Weight (lbs) 100
Master Pack Width (in) 10
AMPS 5.5
Capacity Cast Iron 5/8"
Drill Press Model Bench Model
